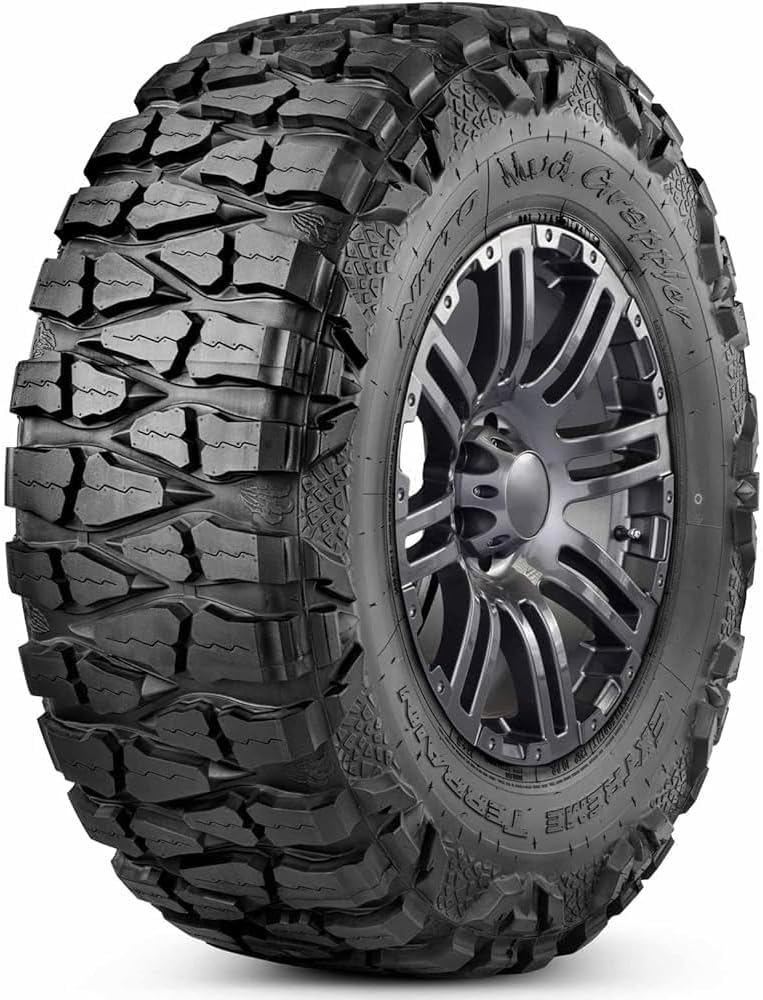

Nitto Mud Grappler
Extreme mud-terrain tires for lifted trucks and 4x4s
Deep mud, rock and washed-out trail is where this tread earns its keep. It takes 5 out of 5 off-road and 1 out of 5 for quietness on the same five-point scale, and both numbers are honest. Seventeen fitments run from 33 to 40 inches on 15 through 22-inch wheels.
Every Mud Grappler Size
15-inch wheels
1 size
16-inch wheels
1 size
17-inch wheels
4 sizes
18-inch wheels
4 sizes
20-inch wheels
5 sizes
22-inch wheels
2 sizes
Four more configurations exist in the wider Mud Grappler range, and availability on them varies: 35x14.50R15LT, 38x15.50R15LT, LT315/75R16 and LT385/70R16. A Nitto dealer can source those directly.
Buy by specification, not by the number in the name. Confirm the approved rim width, the actual inflated dimensions and the load rating your truck needs. Which sizes sit in stock changes through the year.
What Makes It an Extreme-Terrain Tire
A tread built to empty itself
A mud tire quits the moment its voids pack solid and the tread turns into a smooth spinning drum. The Mud Grappler leaves wide open space between blocks so soil throws clear as the tire turns, which keeps fresh edges cutting into soft ground instead of riding on top of it.
Sidewall lugs that do real work
Air a tire down on rock and the shoulder starts carrying load the tread cannot reach. The lugs here are unusually deep for that reason, adding biting edges on ledges and rut walls plus a thick layer of rubber between an obstacle and the casing.
Three plies and a steel belt package
Underneath sit three polyester plies in the sidewall and high-strength steel belts beneath the tread. That combination resists trail punctures better than a two-ply casing. It is not armour: sharp rock, low pressure and speed still cut tires.
21/32 in. of tread to start
Most fitments leave the factory at 21/32 in. The two smaller LT-metric 16-inch sizes come in lower, at 19.7/32 in. for the LT305/70R16 and 20.7/32 in. for the LT315/75R16. Deep blocks are what let the tire keep penetrating once the surface goes soft.
Two sidewalls, one tire
One side of every Mud Grappler wears Nitto's lizard-skin lug design. The other side runs plain lugs. You choose which face points out at mounting, so a single part number gives the truck two distinctly different looks. Say which one you want before the installer breaks the bead, because switching after the fact means pulling all four back off the wheels.
What It Is Like on Pavement
Off-road
5 / 5
The highest score on the scale, and the reason the tire exists.
Dry pavement
2.5 / 5
Fine for getting to the trail. Not a handling tire.
Wet pavement
2.5 / 5
Slow down in heavy rain. Big voids move water, but the compound and the block count work against grip.
Ride comfort
1.5 / 5
Firmer on heavy LT casings and big diameters. Pressure and wheel weight shift the result.
Quietness
1 / 5
A steady hum that rises with speed. You will hear it at 50 mph and above.
That scale is Nitto's own, which makes it the most useful thing written about this tire. A 5 next to a 1 is not a flaw in the design. It is the trade the design makes.
The noise comes from geometry you can see. Wide voids and tall blocks push air around instead of through a tight rib pattern, so the tire hums, and the hum climbs with speed. On a truck that lives on the interstate, the sound is difficult to stop noticing.
Wet pavement asks for more space and earlier braking than an all-terrain tire needs. Ride firmness tracks the casing: a load range E 20-inch fitment rides harder than a C-rated 15, and a heavy wheel makes it worse.
Buy this tread because you use it. If the truck sees pavement six days out of seven, a quieter Grappler or a serious all-terrain leaves you happier with the same money.
33, 35, 37, 38 or 40 Inches?
The number on the sidewall is a label, not a measurement
A 35 is rarely 35.00 in. tall. The 35x12.50R17 inflates to 34.84 in., the 18 and 20-inch versions of the same nominal size to 35.04 in. Section width shifts too: 13.19 in., 13.39 in. and 13.00 in. across those three. Compare the published dimensions, not the moulded name.
Wheel width has an approved range
Correct diameter does not make a wheel compatible. A 33x12.50R17LT is approved for 8.5 to 11 in. of rim width, a 40x15.50R20LT for 11 to 14 in. Offset and backspacing then decide where the assembly actually sits.
Check clearance at full lock and full compression
A tire that clears the fender at ride height can still tear into the liner when the suspension stuffs or the wheel turns all the way. Cycle the steering and load the suspension before you call a fitment good. Trimming, a different offset or a lift changes the answer.
Load range C, D and E are 6, 8 and 10 ply
Rated capacity runs from 2,270 lb per tire on the 33x13.50R15LT C up to 4,300 lb on some 17-inch fitments. Meet what the truck needs. Higher is not automatically better, because heavier construction costs weight and ride.
A big jump changes gearing, not just clearance
Individual tires run from 66.9 lb to over 111 lb depending on size. The 35s sit near 77 to 82 lb, the 37s near 84 to 97 lb, the 40s past 108 lb. Taller rubber lengthens the effective final drive, which shows up in acceleration, shift behaviour and an optimistic speedometer.
Pick which sidewall faces out before mounting
Every Mud Grappler carries a different design on each side. Tell the installer which one you want visible while the tire is still off the wheel, because changing your mind later means dismounting and remounting all four.
Pressure, Rotation and Wear
Start at the door placard
The placard around the driver door gives the cold pressure the vehicle was built around. The big number moulded into an LT sidewall is that tire’s ceiling, not a target. Move away from the original size and the maths changes, so have a shop set the figure from axle weights rather than guessing at it.
Air back up before the highway
Dropping pressure on the trail buys footprint and compliance. How far down depends on wheel, weight, terrain and speed, so there is no single number worth repeating. Bring it back to road pressure before any sustained run on pavement.
Rotate every 6,000 miles
Follow the interval and pattern in the owner manual first. With nothing specified, front-to-back every 6,000 miles works, and 7,500 miles is the outside limit. Recheck pressure afterwards, since front and rear rarely want the same figure.
Chase uneven wear to its cause
Aggressive blocks make cupping and heel-toe wear loud and obvious. Rotation spreads the damage around the truck without fixing it. Alignment, balance and worn suspension parts are the usual culprits, and all three get worse under a 100 lb assembly.
Look the tires over after a hard trail day. Cuts through a lug, exposed cords, a bulge in the sidewall or a block that has torn loose all need attention before the next trip, whatever the tread depth gauge says.
Mud Grappler Owner Reviews
Absolutely what I wanted and shipping was much faster than even they said. Completely satisfied and will use these folks again!
Ruben J Quartana
Tires look great and they were delivered quickly. Would definitely purchase again.
Elizabeth
Awesome looking, very aggressive and very capable tires. I didn't get too many miles on my last ones....they wear very fast, but they perform awesome offroad. The compound is soft and sticks to the rocks, the 1...
* Desert Rose *
Hard to find this tire in stock and ordered and had them delivered in a week. UPS delivered 4 out of the 5 and the fifth one came a day later. Tires were brand new with stickers. No issues with mounting or bala...
Rick and Gayla Jones
Great tires. I got about 35000 out of the first set. Just put a second set on my Dodge 2500. Never had one issue with these tires. Give TSL Super Swampers a run for their money.
kimberly c hanthorn
Work great in the mudd and on the trail. You will have some tire noise above 50mph but I like the hum of the tires anyway.
Michael M.
Who Makes the Mud Grappler
Nitto Tire opened in 1949 and grew by building the sizes and tread patterns a mainstream catalog skipped. Enthusiast fitments are still the centre of the business, which is why the Grappler family runs from highway-terrain rubber all the way out to this tire.
Mud Grappler occupies the far end of that range on purpose. It is not the Nitto for most trucks. It exists for the ones that need a tread and sidewall package a road tire cannot supply, and it does not pretend otherwise.
A large share of Nitto production comes out of the company's plant in Bartow County, Georgia, though not every size is built there. Where a specific set came from is stamped on its own sidewall. Seventy-five years on, the brand still shows up at drag strips and at King of the Hammers, which is roughly the spread of what it makes.
Mud Grapps, grapps, mud graps
All of those point at the same tire. The sidewall reads Mud Grappler, the family is Nitto's Grappler line, and the nicknames come from the people running them. Nothing called a “Grapp” exists as a separate model.
Warranty and registration
Every Nitto tire carries a limited manufacturer's warranty. What it covers depends on the terms, the condition of the tire and how it was run and maintained, so keep the invoice and the rotation records. Impact cuts, punctures and damage from a bad installation get judged against the actual warranty text, not against expectations.
Registration takes a couple of minutes and matters most on tires that stay in service for years. Record the complete DOT number from each sidewall when you do it.
Frequently Asked Questions
The Nitto Mud Grappler is an extreme mud-terrain light truck tire developed for demanding off-road use on dirt, rocks and mud. It uses a high-void tread pattern, massive sidewall lugs and a three-ply polyester sidewall construction. On Nitto's own five-point scale it takes the maximum 5/5 for off-road performance, which makes its intended use clear.
Yes. Mud is one of the tire's primary applications. Large spaces between the tread blocks create a high void ratio that gives displaced mud and dirt room to leave the tread as the tire rotates. This reduces packing and allows the blocks to keep finding traction in soft terrain.
The Mud Grappler is designed for rocky terrain as well as mud. Its large sidewall lugs create additional biting edges when the shoulder and sidewall contact rocks, ledges or uneven surfaces. Extra rubber depth around this area also adds protection, and the tire uses a three-ply sidewall with a high-strength steel belt package to improve puncture resistance.
Mud Grapplers can be driven on paved roads, but highway refinement is not their priority. The tire scores 2.5/5 for both dry and wet performance, 1/5 for quietness and 1.5/5 for ride comfort on Nitto's five-point scale. Drivers choosing Mud Grapplers for a daily-driven truck should expect more tread noise and a firmer road experience than they would get from an all-terrain or highway-terrain tire.
Yes. Mud Grappler is an aggressive off-road tire and its quietness rating is 1 out of 5. The large tread blocks and substantial open spaces that help clear mud also generate considerably more sound on pavement than a closely packed road-oriented pattern. A quieter Grappler model is a better fit when highway comfort matters more than maximum extreme-terrain capability.
Every Mud Grappler has two different sidewall designs. One side uses Nitto's lizard-skin lug pattern and the other has plain sidewall lugs, so the preferred appearance can face outward during installation. Both sides retain the aggressive lug structure that contributes additional biting edges off-road. Choose the visible design before the tires are mounted.
Mud Grappler is sold in a broad range of LT-metric and flotation sizes for modified trucks and 4x4s. Current fitments include options for 15, 16, 17, 18, 20 and 22-inch wheels, with large flotation sizes extending to nominal 40-inch tires. Exact diameter, width, load capacity and approved rim width depend on the selected size, so fitment should be checked by specification rather than nominal diameter alone.
Not necessarily. A matching wheel diameter does not guarantee clearance. Tire width, actual inflated diameter, wheel width, offset, backspacing, suspension height and the vehicle's steering geometry all affect fitment. Clearance should also be checked at full steering lock and through suspension travel. Larger tires can require suspension changes, trimming or other modifications depending on the vehicle.
They can, but the decision should be based on priorities rather than appearance alone. Mud Grappler makes the most sense when meaningful off-road use justifies its road compromises. The tire earns 5/5 off-road but only 1/5 quietness and 1.5/5 ride comfort. A truck that spends nearly all of its time commuting or traveling on highways generally benefits from a less extreme tire.
There is no single Mud Grappler pressure that applies to every truck. Correct cold inflation depends on tire size, vehicle weight, axle load and the application. The maximum pressure associated with a tire's load specification is not automatically the correct everyday pressure. The starting point is the vehicle's original-equipment tire information, including the Tire Information Placard normally found around the driver's door area. Once the tire size no longer matches the original fitment, a tire dealer can work out the correct cold pressure from the vehicle's load data.
No pneumatic off-road tire is puncture-proof. Mud Grappler does, however, use several features intended to improve resistance to trail damage: a three-ply polyester sidewall construction, a high-strength steel belt tread package and substantial sidewall lug depth. Sharp rocks, severe impacts and incorrect inflation can still damage the tire.
Mud Grapplers carry a limited manufacturer's warranty, with eligibility governed by the applicable warranty terms and the tire's use, condition and maintenance history. Coverage should not be treated as insurance against every puncture, impact or form of off-road damage. Purchase documents and maintenance records should be retained in case a warranty evaluation is required.
Mud Grappler is a Nitto Tire product. Nitto was founded in 1949 and has developed its tire business around enthusiast applications, including specialized sizes, tread designs and performance characteristics that are often required for modified vehicles and demanding driving conditions. Mud Grappler sits at the extreme-terrain end of Nitto's light-truck lineup.
Many Nitto tires are manufactured in the United States at the company's facility in Bartow County, Georgia, but not every tire or every Mud Grappler size is made there. Check the country-of-origin marking on the individual tire when manufacturing location is important for a purchase.
Nitto Tire was founded in 1949, giving the brand more than 75 years of history as of 2026. Its current range extends beyond extreme mud tires into other light-truck, SUV/CUV, passenger-car, competition and heavy-duty applications. The Grappler family reflects the company's long-running focus on enthusiast trucks and specialized off-road fitments.
When a Mud Tire Is the Wrong Answer

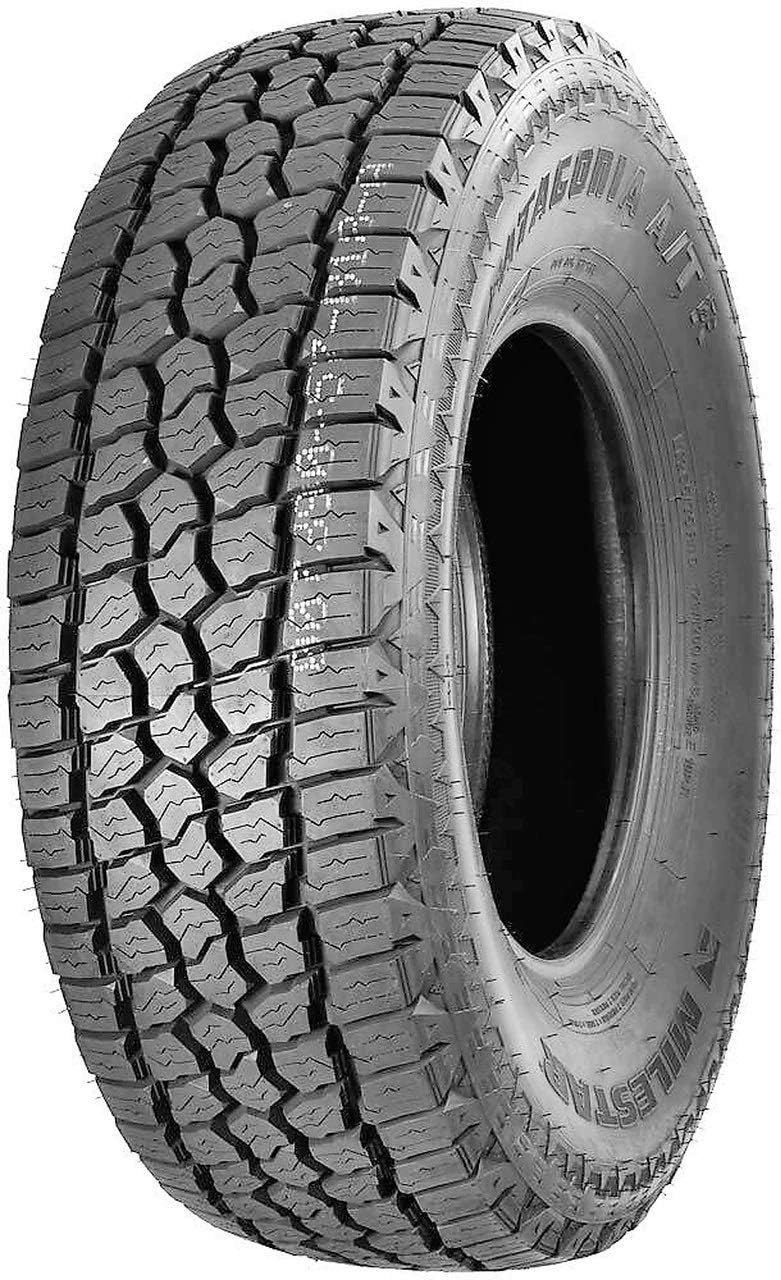

Patagonia
The sensible step down for a truck that mostly commutes. All-terrain tread keeps enough bite for gravel and dirt, the A/T W adds a 3PMSF severe-snow rating, and the cabin stays quiet enough to hear the radio.
Visit website

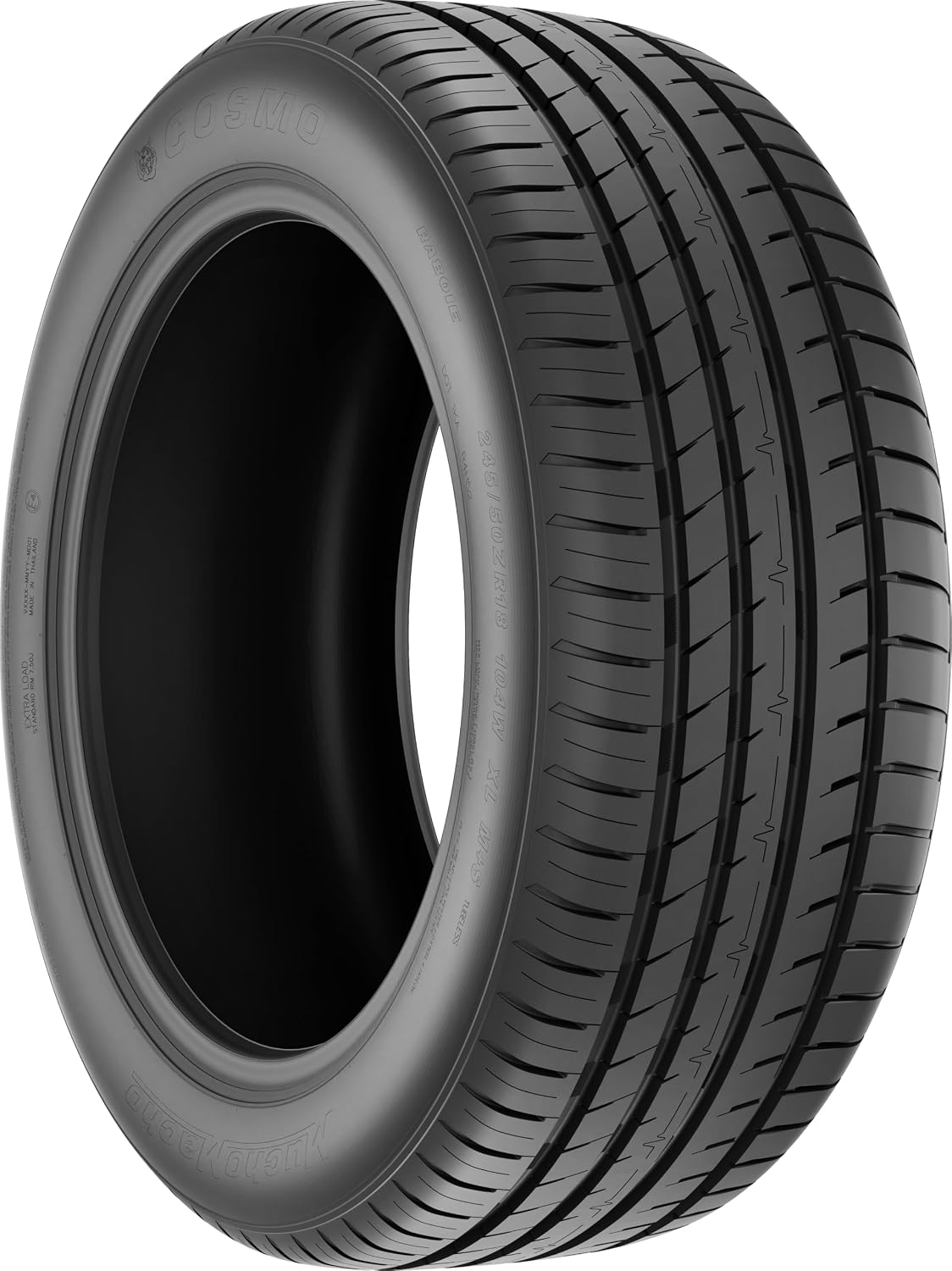

Mucho Macho
The far end of the pavement scale: an ultra-high-performance all-season tire in W and Y speed ratings, built around steering response. Everything the Mud Grappler spends on lugs goes into a contact patch here.
Visit website

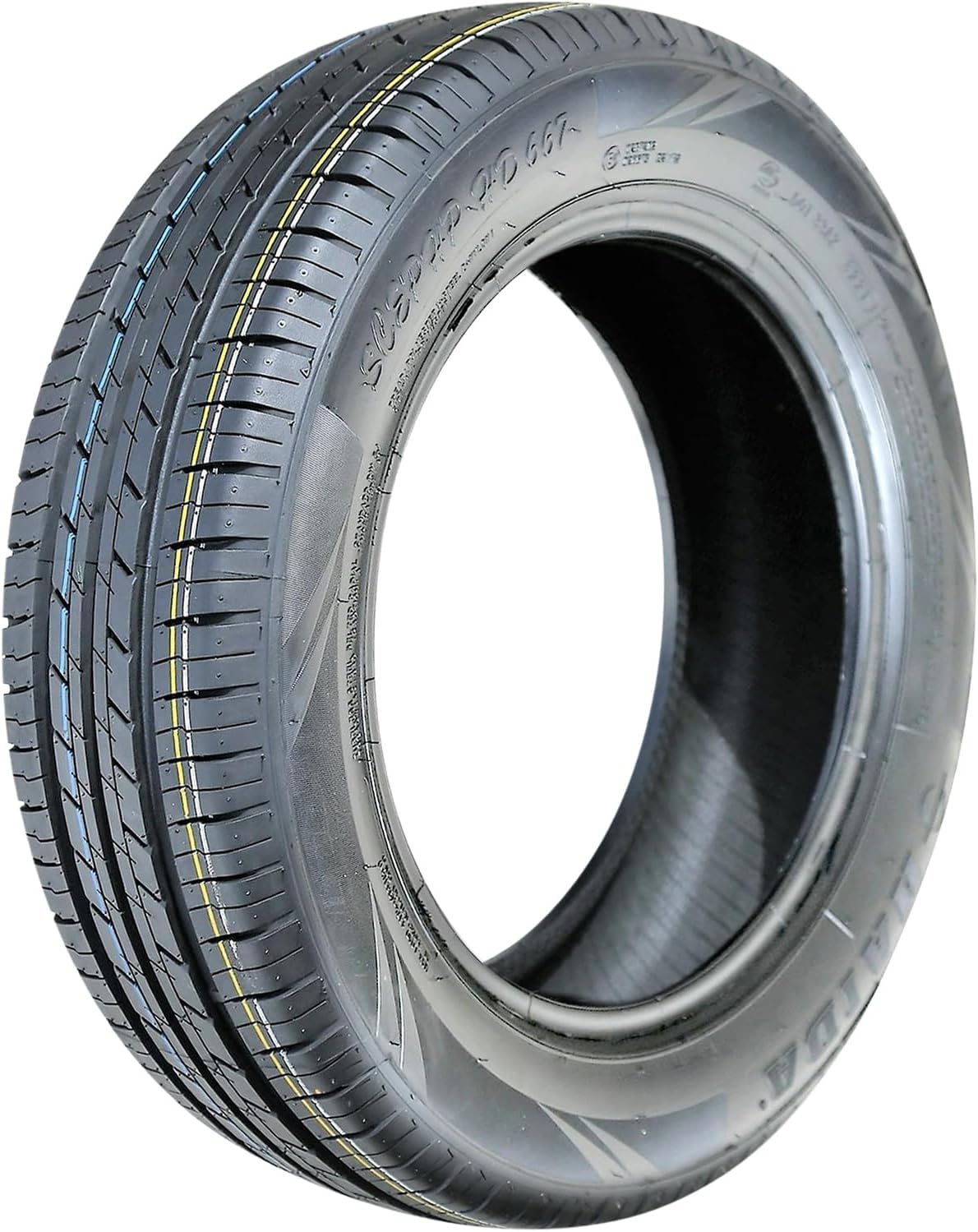

Haida
Budget rubber across all-season, highway and mud-terrain patterns, in small sizes no flotation chart reaches. Worth a look for a second vehicle that never leaves the road.
Visit website

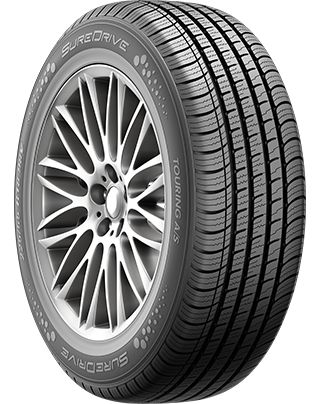

SureDrive
Touring tires for sedans and crossovers with 55,000 miles of treadwear coverage. Nothing in common with an extreme mud tire beyond the wheel it bolts to, which is exactly the point for a daily car.
Visit website

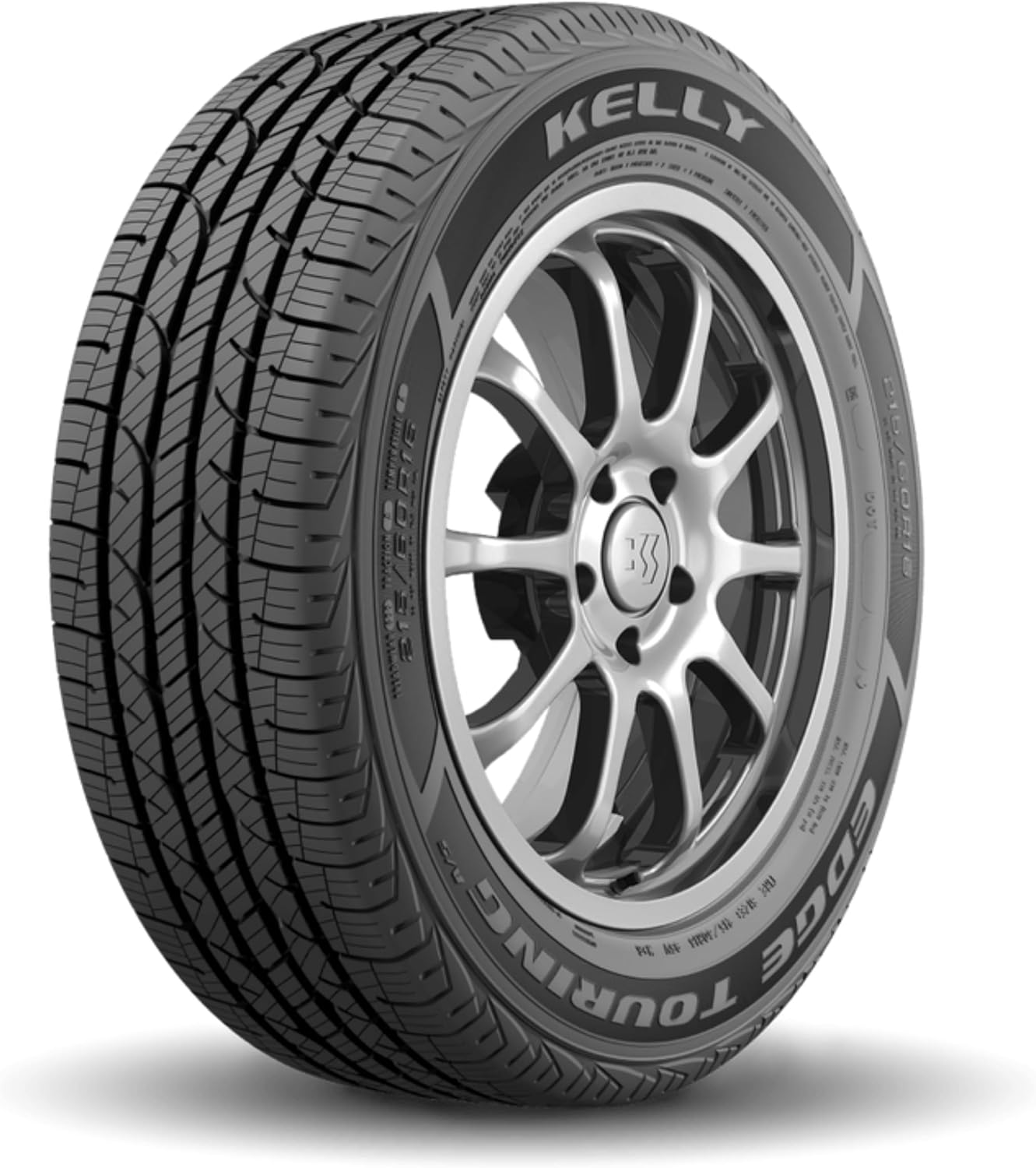

Kelly
Goodyear has owned Kelly since 1935 and runs it as the value badge. The Edge line covers touring, all-season and light-truck fitments when the budget matters more than the tread pattern.
Visit websitePut the Right Size Under It
Start from the wheel on the truck, then match rim width, real inflated diameter and load range. Settle the sidewall question before the tires go on.
